Case Study · Modesto, CA · 2026-05-19
Modesto Flat Roof Drain Repair at 1205 David Court
Targeted rooftop drain failure repair on a residential flat roof in Modesto CA — addressing corroded drain assembly, surrounding membrane failure, and interior dry rot caused by years of slow leaks.
1205 David Court Drain Repair.
- Material:
- Single-ply waterproofing membrane patch with new drain assembly
- Scope:
- Cut back failed membrane around the corroded drain. Remove and replace drain bowl, strainer, and clamping ring. Install new heat-welded membrane patch tied into the existing sound membrane. Document interior dry rot for the homeowner’s records and recommend insulation/sheetrock follow-up inside the affected ceiling area.
- Location:
- 1205 David Court, Modesto CA 95350 · Stanislaus County
- Completed:
- May 2026
What was leaking at 1205 David Court

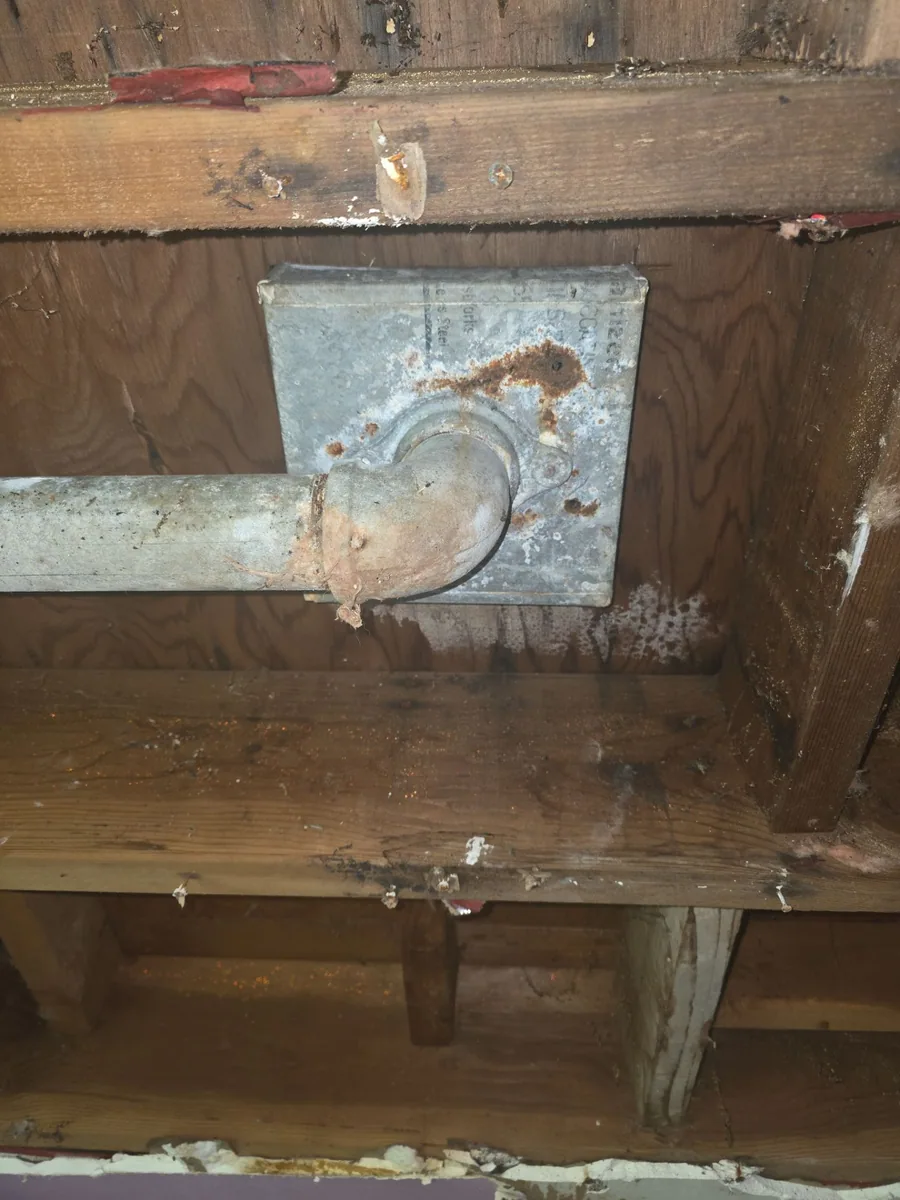

The homeowner called us after noticing brown staining on a bedroom ceiling that wouldn’t go away. By the time we got on the roof, the cause was obvious: the rooftop drain assembly was corroded through, the strainer was missing, and the membrane around the drain had failed in a roughly two-foot ring. Years of slow leaks had traveled down through the deck and into the framing below, soaking insulation and rotting the sheetrock around the ceiling penetration.
Why a spot repair was the right call
Not every flat-roof problem is a full-roof problem. We walked the rest of the membrane, probed for soft spots, checked the seams, and inspected the parapet flashing. Everything outside that two-foot ring around the drain was structurally sound. Replacing the entire roof would have meant tens of thousands of dollars to fix a problem that was localized to one penetration. A targeted spot repair restored watertight performance for a fraction of the cost.
How we did the repair
- Cut back the failed membrane — clean square cut to sound material, about 18 inches in every direction from the drain.
- Remove the corroded drain assembly — bowl, strainer, and clamping ring all came out together.
- Install a new drain assembly — matched to the existing pipe size, set with sealant, and clamped down with a fresh ring.

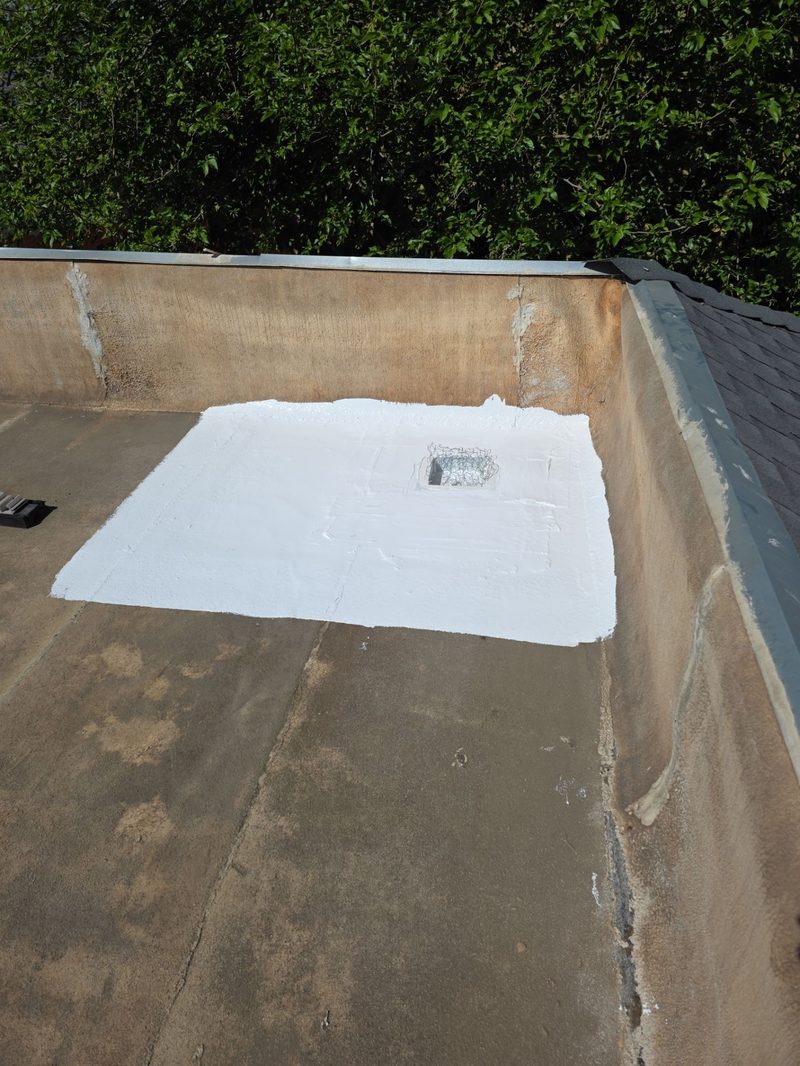

- Weld in a new membrane patch — heat-welded around the new drain and tied into the surrounding sound membrane with overlapping seams.
- Water test — flooded the drain area to confirm flow and no leakage at the new seams.
- Document the interior — photos of the dry rot, insulation, and sheetrock so the homeowner has what they need for any follow-up work or insurance conversation.
When spot repair is the right call vs full replacement
Spot repair works when the failure is localized and the rest of the membrane is sound. It does not work when the membrane is at the end of its service life everywhere, when seams are failing across multiple sections, or when the underlying insulation board is saturated over a wide area. The right call comes from getting on the roof and looking — not from a phone-call estimate. We never recommend a full replacement when a targeted repair will deliver the same outcome for less money.
Insurance considerations
Sudden drain failures and the resulting interior water damage are often covered under standard homeowner policies, particularly when the failure is documented and the damage is recent. We document every repair with before, during, and after photos plus a written scope. That packet is what your insurance adjuster needs — and it’s included in the price of the repair, not an extra charge. For storm-related damage, see our storm damage & insurance service for the full process.
